Framless heating panel with bui-in wifi and remote control

  • MODEL NUMBER
    IGT2-F1206
  • WARRANTY
    5 years
  • POWER
    700w
  • SURFACE TEMPERATURE
    Mainly 80-100 °C
  • POWER SOURCE
    Electric
  • INSTALLATION

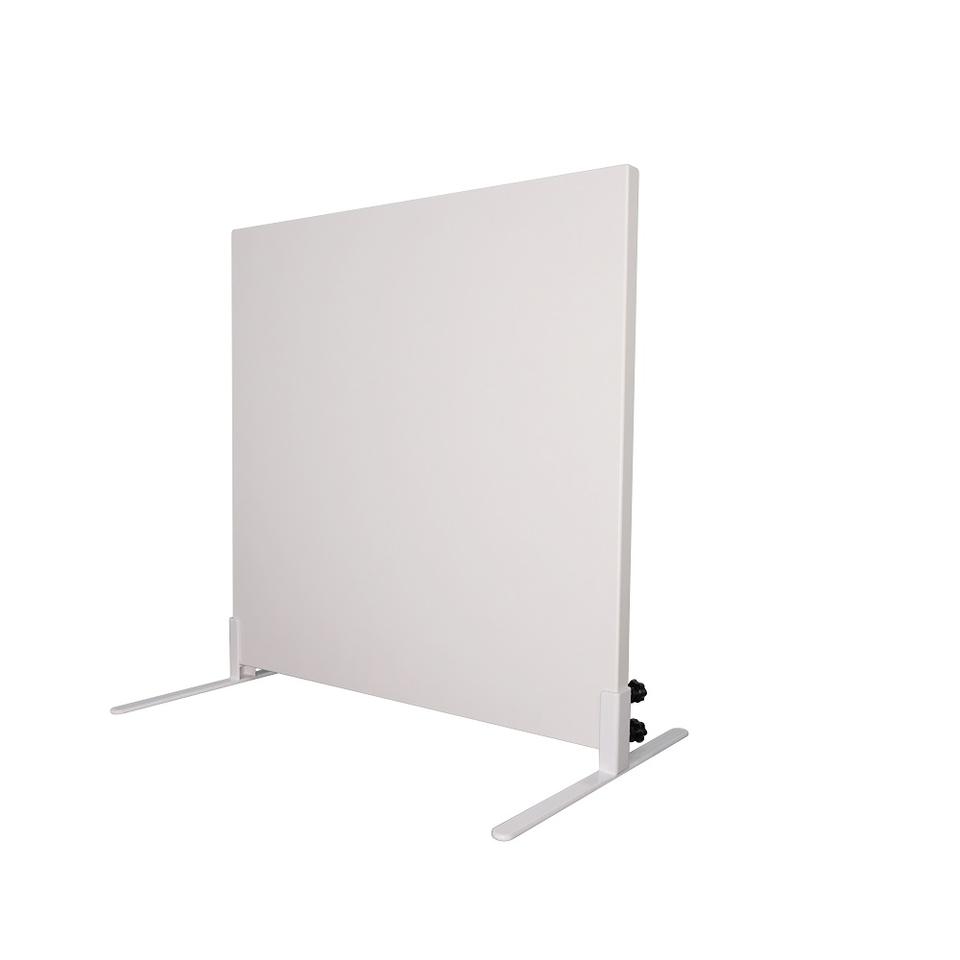

    Ceiling;Freestanding;Wall Mounted
  • FUNCTION
    Adjustable Thermostat;Overheat Protection;Remote Controlled
  • AFTER-SALES SERVICE PROVIDED
    Return and Replacement



PRODUCT DETAILS





Frameless Style.



It has a simple and pleased shape, thickness is 25mm.Whether you mount it onto a wall or ceiling, it will fit pefectly

into the room space. The finish of frameless shell is achieved by several stages bending forming, welding burnish and surface treatment working procedure, along with numerous rine.



Smart Control.

Built-in WIFI receiver, remote-controller and Mobile Phone APP constitute the smart temperature control sysytem.

You can turn on your infrared panel heater before you come back home via you phone.

Share the panel heater to your family member, then all members can control it at any time and in any place







HEATING METHOD

Infrared heating is an indirect heating method that simulates solar heat by not heating room air, unlike conventional convection heating, they can release the stored thermal energy evenly into the room, so it gives you a warm feeling like sunlight.

Compared with traditional convective heater , it's no dry ,no dust ,maintain a clean, dust free environment.

Remote-Controller.



The remote-controller acquires the room temperature through the senor on the top, and send real-time temperature data to the
bult-in receiver.



This remote-controller has a LCD screen which can display current room and set temperature.

Built-in Receiver

The wifi receiver is built in the rear junction box.

There are also wifi rest button and thermostat disable switch on the jucntion box.


Perfect Corner



Each corner of frameless panel is carefully hand-polished and crafted to a smooth shape, ensuring that all corners stay intact.



Just these complex of craftsmanship makes high quality with nice appearance.

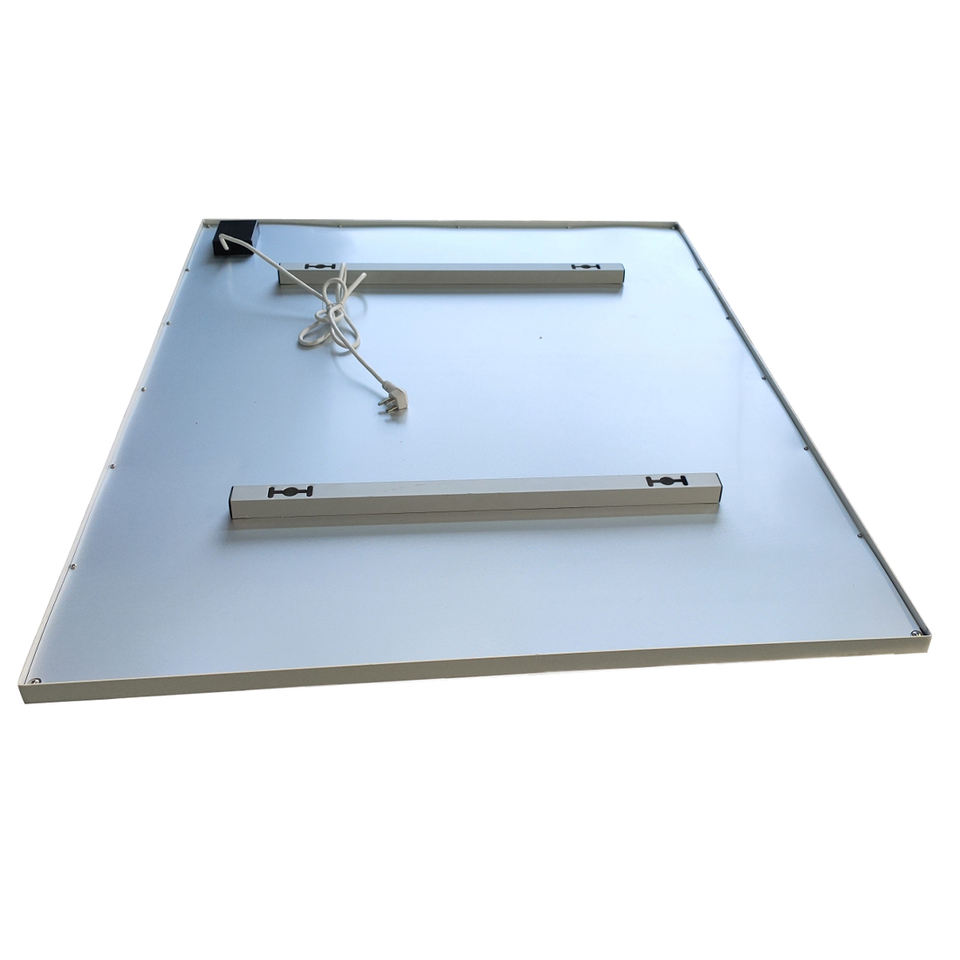

Delicate ans Srong Back style.





All mounting bars are riveted with the bended frame, which makes it with firm structure. The back style of panel are more fashionable, practical and durable.



Heating Element.




High quality carbon particles can generate heat more evenly,more efficient. By continuously practiced and compared,we have applied most advanced infrared heating technology to improve the quality of our panel heaters..

Carbon crystal is a kind of modified purification of carbon particle heating product,which the short carbon fiber is modified by ball milling processing,and made into microcrystalline particles, then add far infrared emission agent, with special craft synthetic made heating element.



SPECIFICATION



Available in a lot of different sizes and power
Model number
Size
        Rated power          (wall mounting only)
  Rated power
(wall/ceiling mounting)
Box size
F0606P
595*595*25mm
350W
270W
70*68*6cm
F0706P
705*605*25mm
450W
320W
80*68*6cm
F1006P
1005*605*25mm
580W
450W
110*68*6cm
F1206P
1195*595*25mm
700W
550W
130*68*6cm
F1207P
1205*755*25mm
900W
700W
130*83*6cm
F1209P
1205*905*25mm
1100W
800W
130*98*6cm





SSCENE DISPLA





H002bcbb5f6e2473196eed57c3dabe7c8x.png_960x960
H1fde156ea8a64a8c9db57592c5a299aeQ.jpg_960x960
Hb4cf6497d6674d31916a5c3e66990656A.jpg_960x960
H77f35b7df823482885d48450636cf81fn.jpg_960x960
Hdb7e1165dfa94bc6b16fcfe27e13b399q.jpg_960x960
Hb48abc4518e244ac9a868b1ed6a8a317P.jpg_960x960
