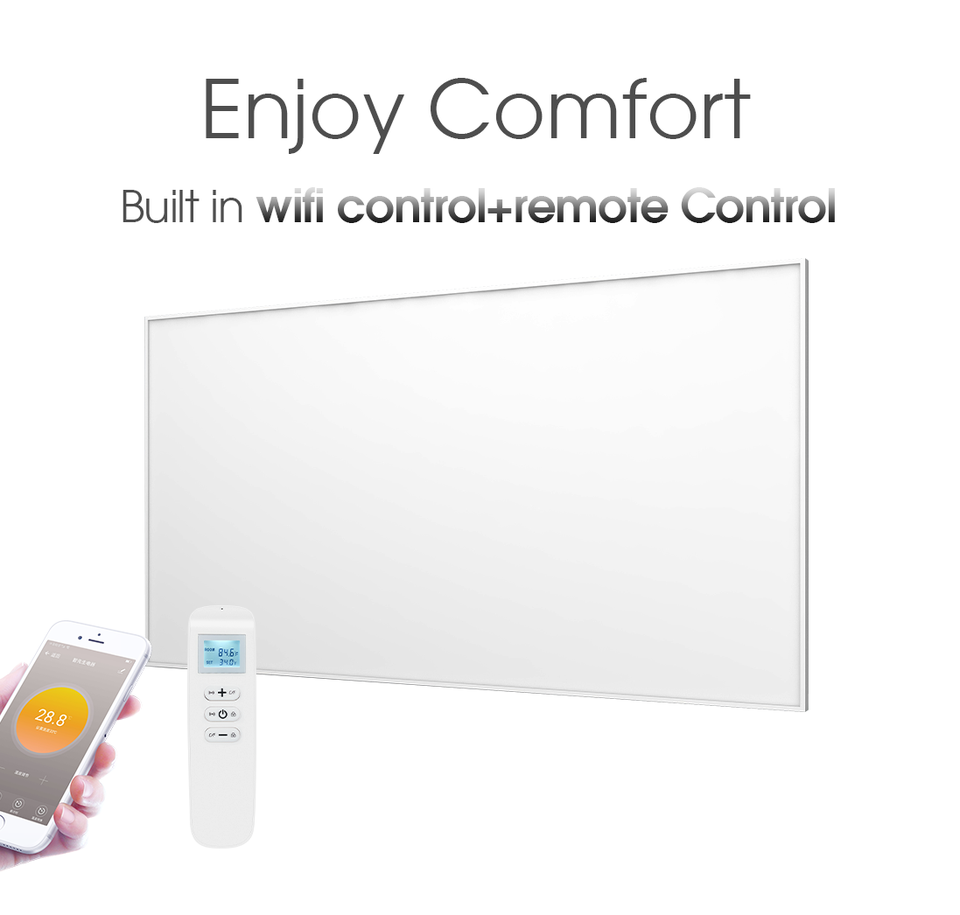

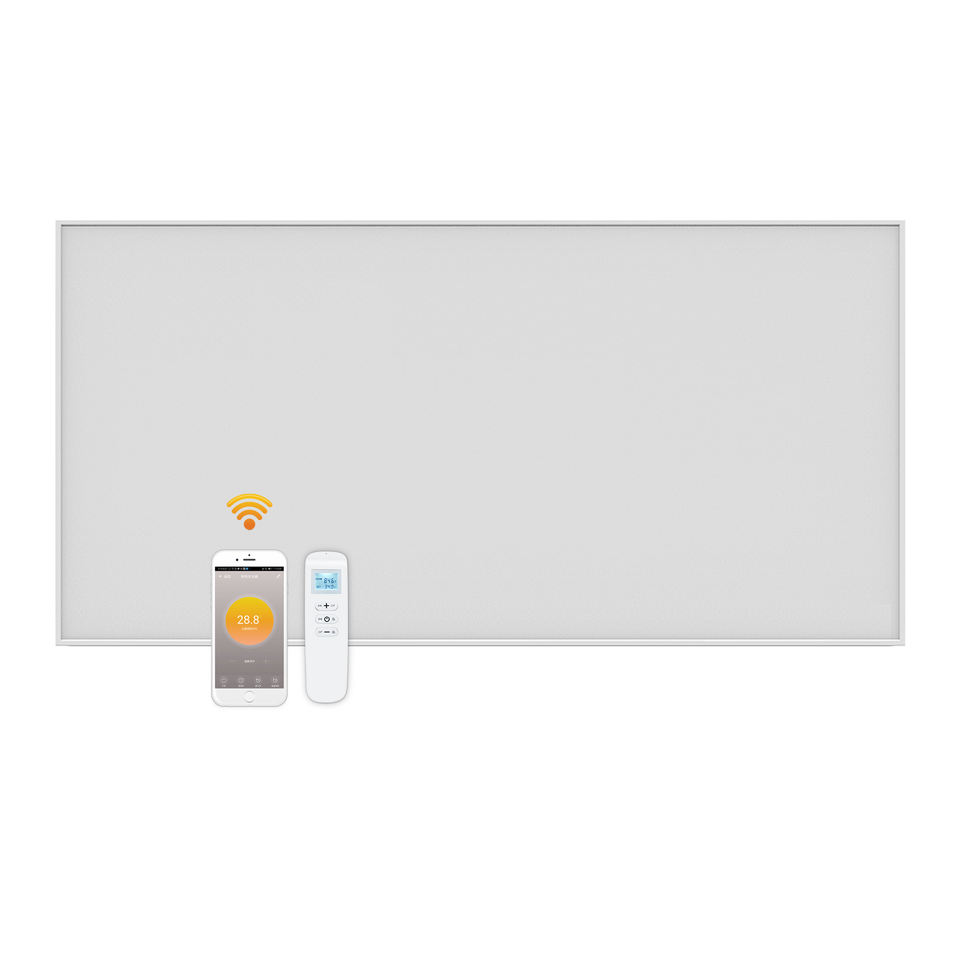

IR Heating Panel With built in WIFI and Remote Control

  • MODEL NUMBER
    IGT2-A1206P
  • WARRANTY
    5 years
  • HEATING ELEMENT
    Carbon Crystal
  • POWER
    700w
  • POWER SOURCE
    Electric
  • INSTALLATION
    Ceiling
  • FUNCTION
    Adjustable Thermostat;Overheat Protection;Remote Controlled
  • AFTER-SALES SERVICE PROVIDED
    Return and Replacement



PRODUCT DETAILS



Function



* WIFI APP Contro

* Remote Control
* Adjust temperature
* Weekly programme
* Count down power off
* Group control
* Share to other users

Built-in Receiver

1. Built-in WIFI receiver, remote-controller and Mobile Phone APP constitute the temperature control sysytem.

2. Turning the thermostat disable switch ON means the built-in wifi thermostat will be useless, all functions include timer, temperature adjust or WiFi control etc will not work, heaters will have only mechanical power on/off function.

Remote-controller.



1. The remote-controller is powered by 2pcs of 1.5V AAA battery. Please change with new batteries if the battery symbol gets flashing, or else the remote will not be able to control the heaters.
2. The remote-controller acquires the room temperature through the senor on the top, and send real-time temperature data to the receiver.
3. The screen can display the room temperature, setting temperature, child lock, battery level etc.
4. The remote-controller has the functions of switching heater on/off, setting temperature,
acquiring room temperature and transmit signal to the heater receiver

Red color means online
Blue color means heater powering on





TUYA Smart Lifi APP



Scan the QR code or search Smart Life to install the TUYA APP
1. Before pairing, please make sure your mobile phone connects to your 2.4ghz WIFI signal invariably.
2. Scan the code with mobile phone and install, and Register an account on this Smart-Life APP

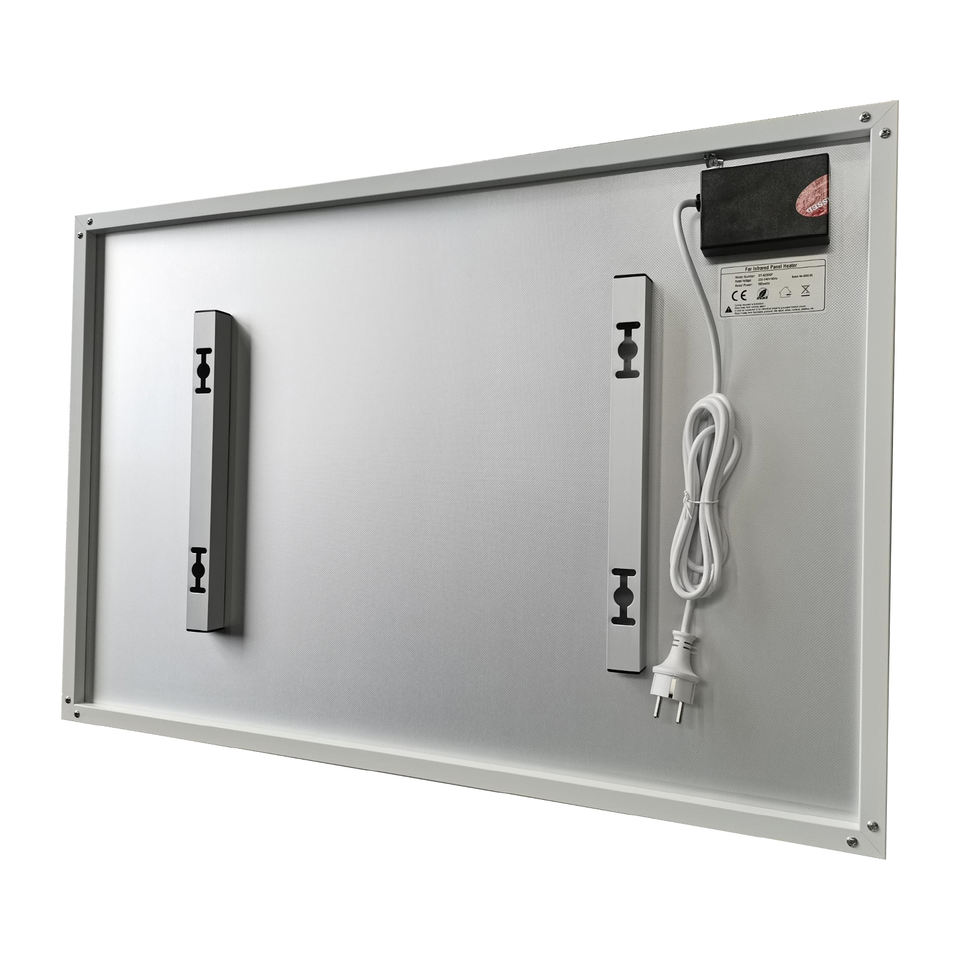

Back Material: Clad steel sheet+ Aluminum mounting bracket+ junction box



SPECIFICATION



Available in a lot of different sizes and power
Model Number
Body Size
Rated power
(wall mounting)
Rated power
(ceiling mounting)
Box size
ITG2-A0605P
605*505*22mm
300W
240W
70*58*6cm
IGT2-A0606P
605*605*22mm
350W
270W
70*68*6cm
IGT2-A0706P
705*605*22mm
450W
320W
80*68*6cm
IGT2-A0906P
905*605*22mm
580W
400W
90*68*6cm
ITG2-A1206P
1205*605*22mm
700W
550W
130*68*6cm
IGT2-A1207P
1205*755*22mm
900W
700W
130*83*6cm
ITG2-A1209P
1205*905*22mm
1100W
800W
130*98*6cm






SCENE DISPLAY
