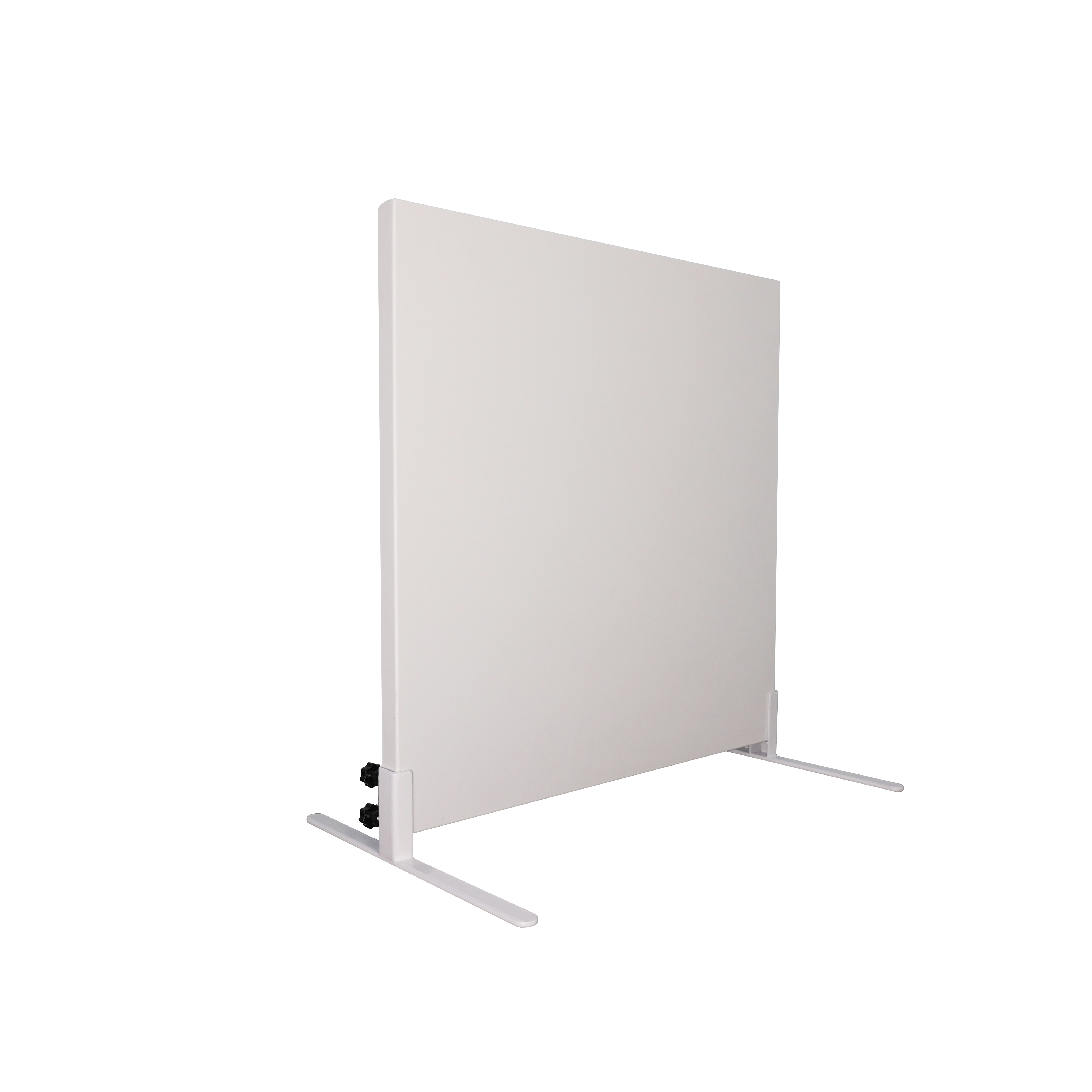

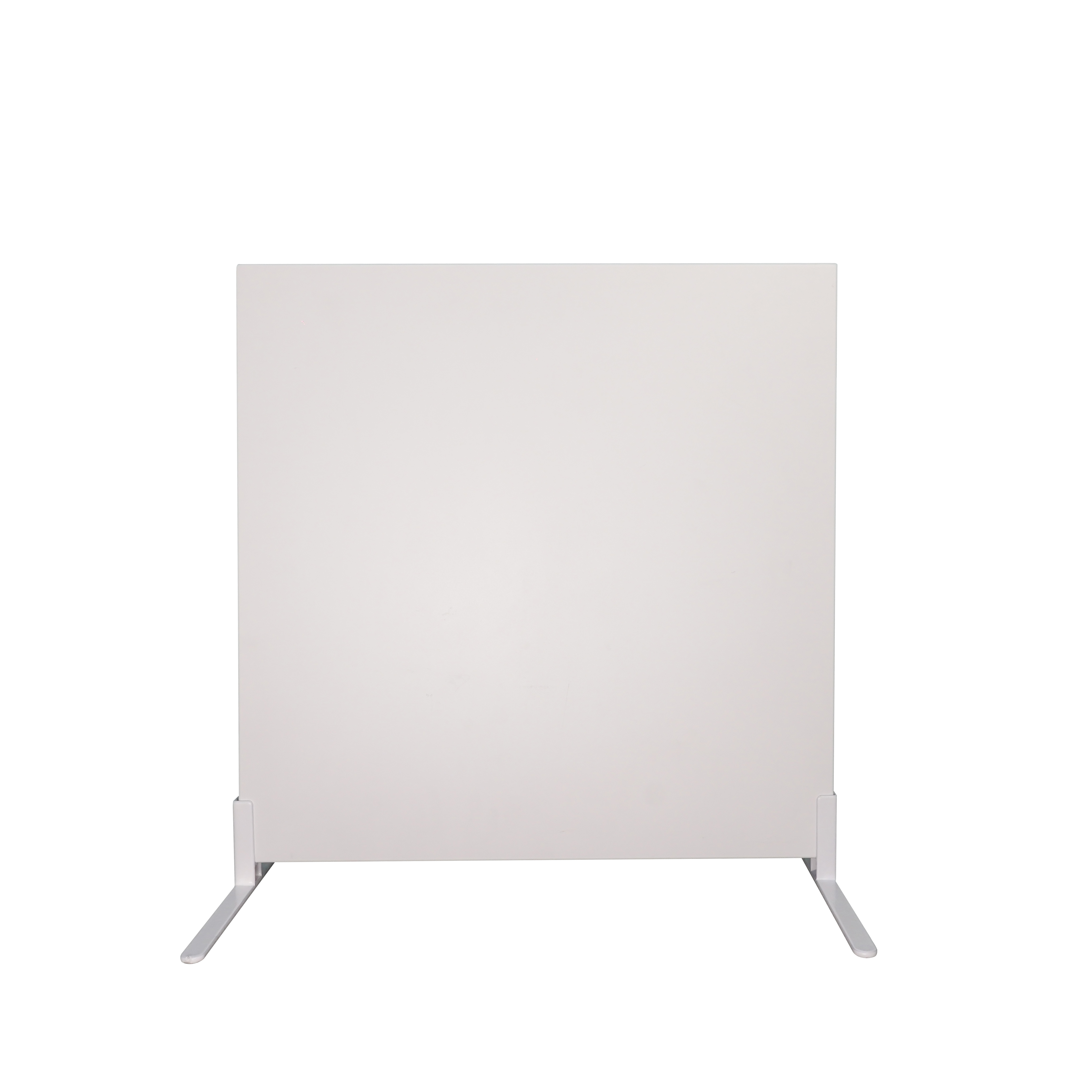

IP54 frameless infrared heater with standing feet

  • MODEL NUMBER
    F0606
  • WARRANTY
    5 years
  • POWER SOURCE
    Electric
  • CABLE LENGTH
    1.9 Meter
  • VOLTAGE
    220-240V~ 50Hz
  • INSTALLATION
    Freestanding
  • FUNCTION
    Overheat Protection;Waterproof
  • HEATING ELEMENT
    Carbon Crystal
  • AFTER-SALES SERVICE PROVIDED
    Onsite Installation
  • RATED POWER
    350W

PRODUCT DETAILS



FEATURES


Frameless Infrared Panels come with a white powder-coated smooth surface finish. Slim in design with a stylish finish will compliment any interior with its minimal, contemporary feel.

They look superb on lounge, office, and bedroom walls as well as suspending them on the ceilings of a modern office, providing an energy-efficient alternative to traditional heaters. Highly efficient, reliable, and safe heating solution with very low running costs. Giving you a refreshing heat that feels like you're standing outside on a summer's day.


Frameless style

It has a simple and pleasing shape, thickness is 25mm. Whether you mount it onto a wall or ceiling, it will fit perfectly into the room space. The finish of the frameless shell is achieved by several stages of bending forming, welding burnishes, and surface treatment working procedure, along with numerous rine.
Delicate and Strong Back style

Back Material: clad steel sheet + Installation alu mounting bracket. All mounting bars are riveted with the bent frame, which makes it with firm structure. The back style of the panel is more fashionable, practical, and durable.
Perfect Corner


Each corner of the frameless panel is carefully hand-polished and crafted to a smooth shape, ensuring that all corners stay intact. Just this complex craftsmanship makes it high quality with a nice appearance.
Heating element

The carbon crystal heating system can warm your space quickly in a few minutes; the aluminum sheet surface maintains good heat storage capacity.
PS: the problem of surface leakage current exceeding the standard has been solved.

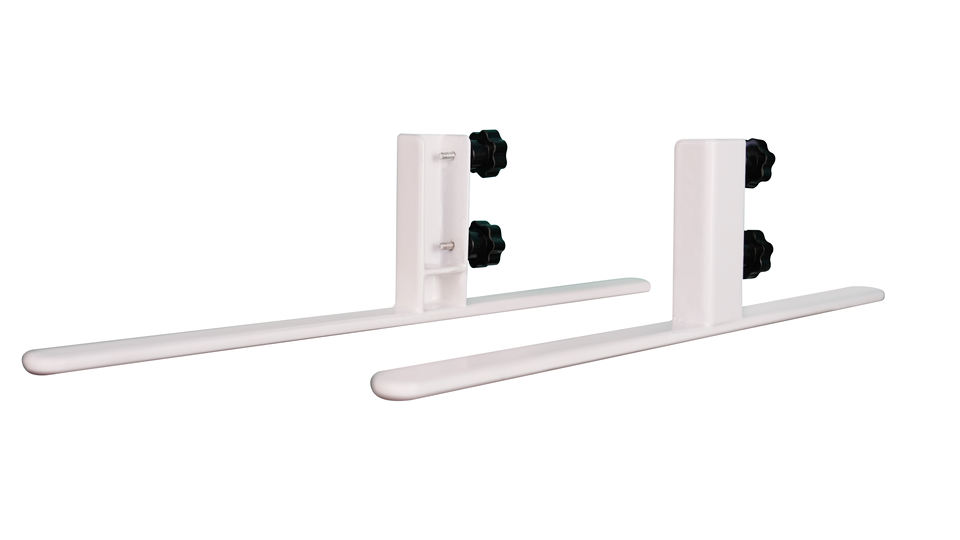

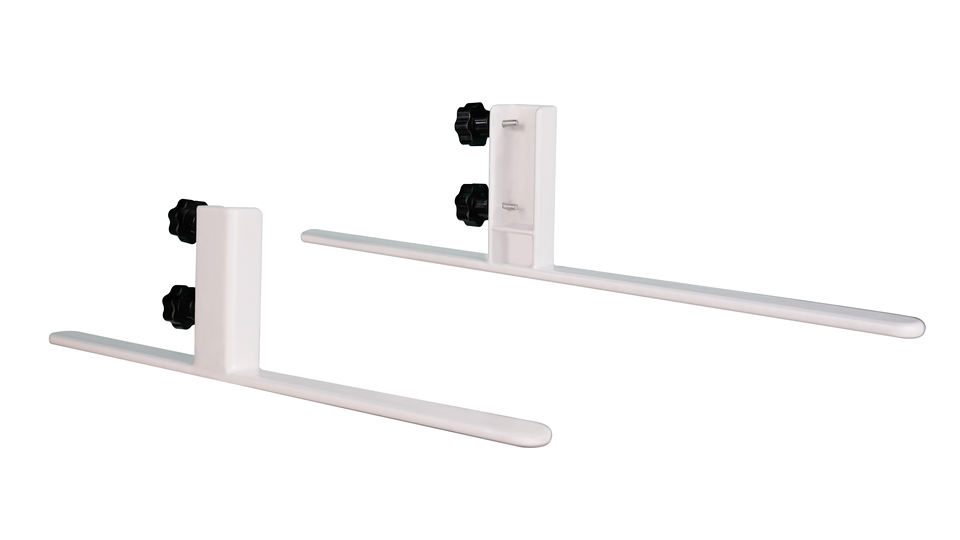

Standing feet
Main Material: Iron
N.W: 750g
G.W: 920g
Box size: 39*6*12cm
Heating method

Infrared heating is an indirect heating method that simulates solar heat by not heating room air, unlike conventional convection heating, it can release the stored thermal energy evenly into the room, so it gives you a warm feeling like sunlight and maintain a clean, dust-free environment.

No pipes, chimneys, potential gas, oil, or water leaks. Byecold infrared heater has Overheat Protection (Auto-power Off when the surface temperature is too high).


SPECIFICATION



 Available in different sizes and powers
Model number
Size
        Rated power                (wall mounting only)
  Rated power
(wall/ceiling mounting)
Box size
F0606
595*595*25mm
350w
270w
70*68*6cm
F0706
705*605*25mm
450w
320w
80*68*6cm
F1006
1005*605*25mm
580w
450w
110*68*6cm
F1206
1195*595*25mm
700w
550w
130*68*6cm
F1207
1205*755*25mm
900w
700w
130*83*6cm
F1209
1205*905*25mm
1100w
800w
130*98*6cm
Features
Surface temperature
Mainly 75-95℃
Surface material
Powder coating + Aluminum sheet
Ingress protection ration
IP54
Frame
Frameless
Certification
CE,RoHS,TUV GS
Voltage Input
220-240V/50HZ
Warranty
5 years
Heating element
Caborn crystal
Other sizes also available
