Basic far infrared heater with plug-in wifi and remote thermostat

  • MODEL NUMBER
    GT-HL1206P
  • WARRANTY
    5 years
  • HEATING ELEMENT
    Carbon Crystal
  • POWER SOURCE
    Electric
  • INSTALLATION
    Wall Mounted
  • VOLTAGE
    220V-240V/50Hz
  • SPECIFICATION
    700W
  • POWER
    700w
  • FUNCTION
    Adjustable Thermostat;Overheat Protection;Remote Controlled
  • AFTER-SALES SERVICE PROVIDED
    Onsite Installation



PRODUCT DETAILS



Simple and Practicable Structure



This HL series has a simple but very structured. Product design is solemn thick, massive and steady, more firm and durable. No additional thermostat is required.

The surface can be printed with your own logo or preferred picture, really the first choice for space heating in household use. The product is thinner and lighter than others, with the same quality and performance. Different model, size, power and good price for choosing.



SIMPLE INSTALLATION



The heating panel is ready for immediate use, no complex installation, mounting kits also included. Suitable for domestic and commercial users



SAFETY



No pipes, chimneys, potential gas, oil, or water leaks. Byecold infrared heater has Overheat Protection (Auto-power Off when the surface temperature is too high).











Open Window Detection.



The thermostat will automatically turn off the heating device if a sudden drop in temperature in the room is detected





Perfect Corner/Diamond Cutting



The corners fit together perfectly, no any gap or metal burr.The solid connectors and the cambered surface of frame both make the structure more steady.

Easy mounting holes at Frame



There is 4 mounting holes at the front frame for easily mounting, users can just punch holes on the wall according to the position of the mounting holes on frames and twist the screws directly.




Surface Material







The carbon crystal heating system can warm your space quickly in few minutes;

IR ceramic coating is our own patented technology and can enhance the far-infrared radiation. Besides, it has high fire-resistant and non-discoloring.

Overheat Protection: Temperature Limiter (125 celsius degrees for wall, 140 celsius degrees for ceiling)

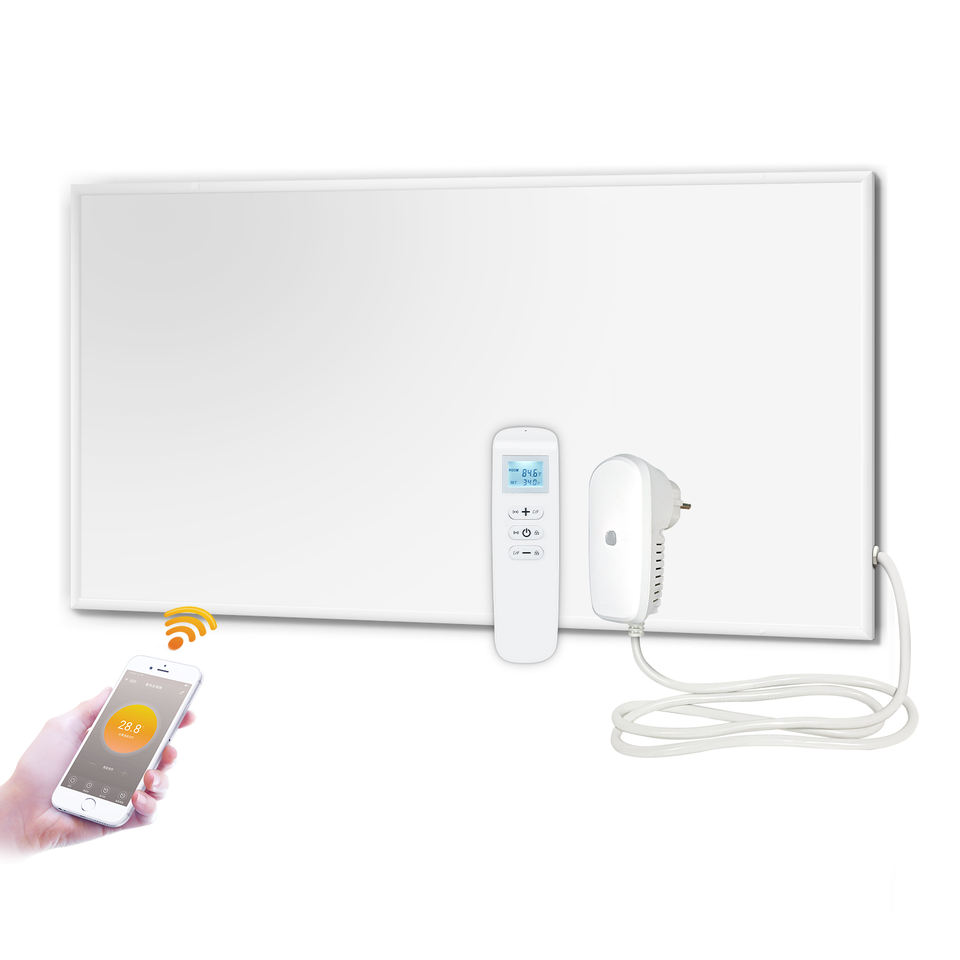

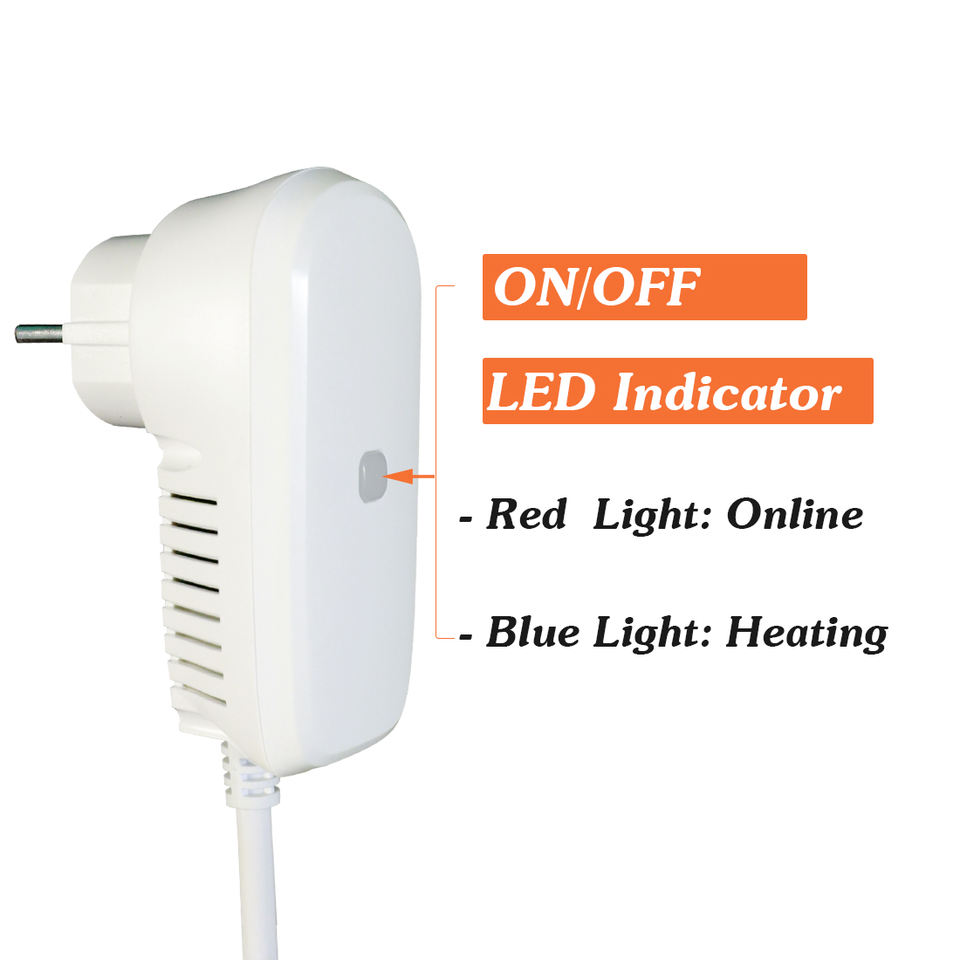

Instructions of Plug-in wifi thermostat and remote control



Remote dimension:105mm×47mm×73mm.

Heat dissipation holes can reduce the error between the displayed temperature and the actual room temperature.

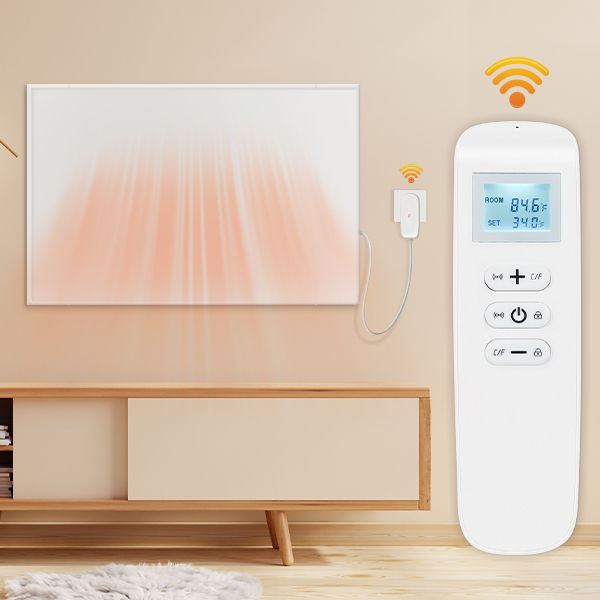

Remote control:
1.Power supply: DC3V (2*1.5V AAA batteries, not included) 2.Power consumption: 3V 0.1mA 3.Temperature setting range:0℃~45℃ 4.Temperature display range: 0℃~50℃ 5.Maximum work distance: <8 meters 6.Remote dimension: 140mm×40mm×18mm 7.Remote weight: 40g
8.The screen can display the room temperature, setting temperature, child lock, battery level etc.
9.Function: switching heater on/off, setting temperature, temperature conversion, child lock etc.





HEATING METHOD

Infrared heating is an indirect heating method that simulates solar heat by not heating room air, unlike conventional convection heating, it can release the stored thermal energy evenly into the room, so it gives you a warm feeling like sunlight and maintain a clean, dust-free environment.









SPECIFICATION


Available in a lot of different sizes and power
Model number
Size
        Rated power          (wall mounting only)
  Rated power
(wall/ceiling mounting)
Box size
HL0605P
620*520*15mm
290W
220W
70*58*6cm
HL0606P
620*620*15mm
350w
270w
70*68*6cm
HL0706P
720*620*15mm
400w
320w
80*68*6cm
HL0906P
920*620*15mm
520w
450w
110*68*6cm
HL1206P
1220*620*15mm
700w
550w
130*68*6cm
HL1207P
1220*770*25mm
850w
650w
130*83*6cm
HL1209P
1220*920*15mm
1050w
800w
130*98*6cm
Features
Surface temperature
Mainly 80-100℃
Surface material
IR Ceramic coating
Warranty
Panel: 5 years  Thermostat: 1 year
Frame
White Aluminum
Heating element
Caborn crysta
Voltage Input
220-240V/50HZ

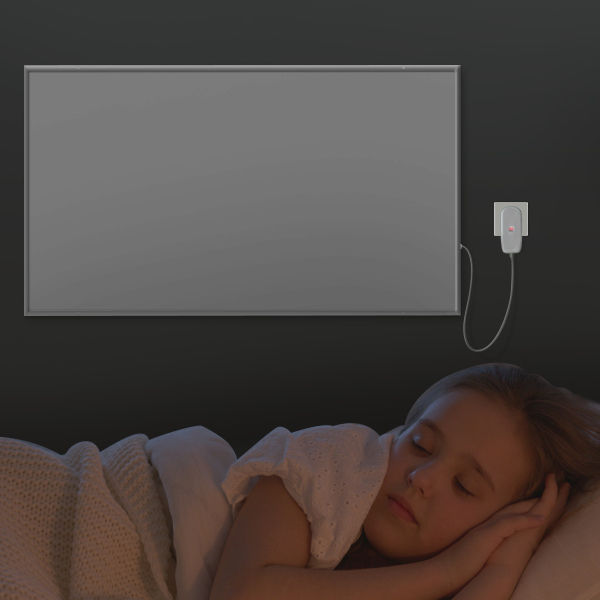

SCENE DISPLAY
