Fast heating IR ceramic coating infrared panel heater

  • MODEL NUMBER
    GT-HL1207P
  • WARRANTY
    5 years
  • HEATING ELEMENT
    Carbon Crystal
  • POWER SOURCE
    Electric
  • INSTALLATION
    Ceiling;Wall Mounted
  • VOLTAGE
    220V-240V/50Hz
  • POWER
    650W
  • SPECIFICATION
    650W
  • FUNCTION
    Overheat Protection
  • AFTER-SALES SERVICE PROVIDED
    Onsite Installation



PRODUCT DETAILS



Simple and Practicable Structure



This HL series has a simple but very structure. Product design solemn thick, massive and steady, more firm and durable. Surface can be printed with your own logo or preferred picture,really the first choice for space heating in household use. The new product is thinner, lighter and better IR efficiency than before, with same quality and performance. Different model, size, power and good price for choosing. Suitable for wall and ceiling installation.



SIMPLE INSTALLATION

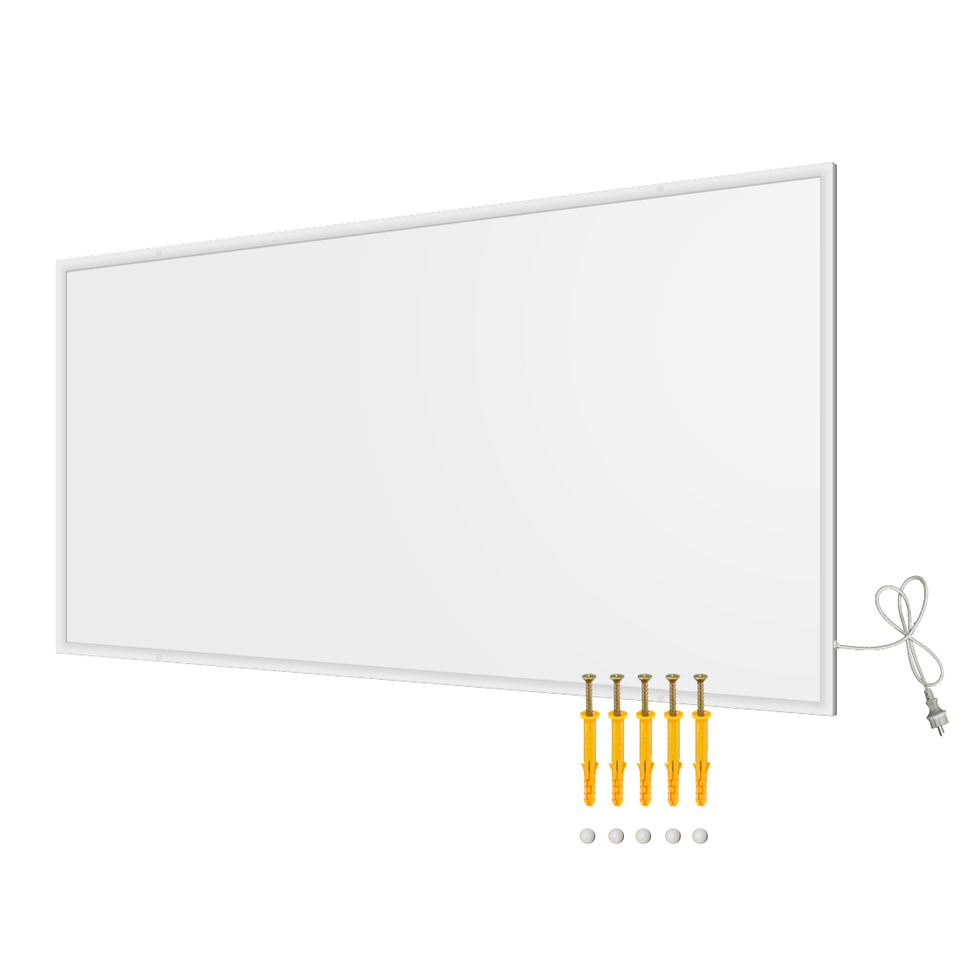

The heating panel is ready for immediate use, no complex installation, mounting kits also included. Suitable for domestic and commercial users



SAFETY



No pipes, chimneys, potential gas, oil or water leaks. Byecold infrared heater has Overheat Protection (Auto-power Off when the surface temperature is too high). Our heating panels comply with all European safety standards (RoHS and CE ).









Perfect Corner/Diamond Cutting



The corners fit together perfectly, no any gap or metal burr.The solid connectors and the cambered surface of frame both make the structure more steady.

Easy mounting holes at Frame



There is 4 mounting holes at the front frame for easily mounting, users can just punch holes on the wall according to the position of the mounting holes on frames and twist the screws directly.



MATERIAL

The carbon crystal heating system can warm your space quickly in few minutes; the aluminum sheet surface keeps the good heat storage capacity.
Overheat Protection: Temperature Limiter (125 degrees for wall, 145 degrees for ceiling)








SPECIFICATION


Available in a lot of different sizes and power
Model number
Size
        Rated power          (wall mounting only)
  Rated power
(wall/ceiling mounting)
Box size
HL0605P
620*520*15mm
290W
220W
70*58*6cm
HL0606P
620*620*15mm
350w
270w
70*68*6cm
HL0706P
720*620*15mm
400w
320w
80*68*6cm
HL0906P
920*620*15mm
520w
450w
110*68*6cm
HL1206P
1220*620*15mm
700w
550w
130*68*6cm
HL1207P
1220*770*25mm
820w
650w
130*83*6cm
HL1209P
1220*920*15mm
1050w
800w
130*98*6cm
Features
Surface temperature
Mainly 80-100℃
Surface material
IR Ceramic coating
Ingress protection ration
IP54
Frame
White Aluminum
Certification
CE,RoHS,SAA
Voltage Input
220-240V/50HZ
Warranty
5 years
Heating element
Caborn crystal

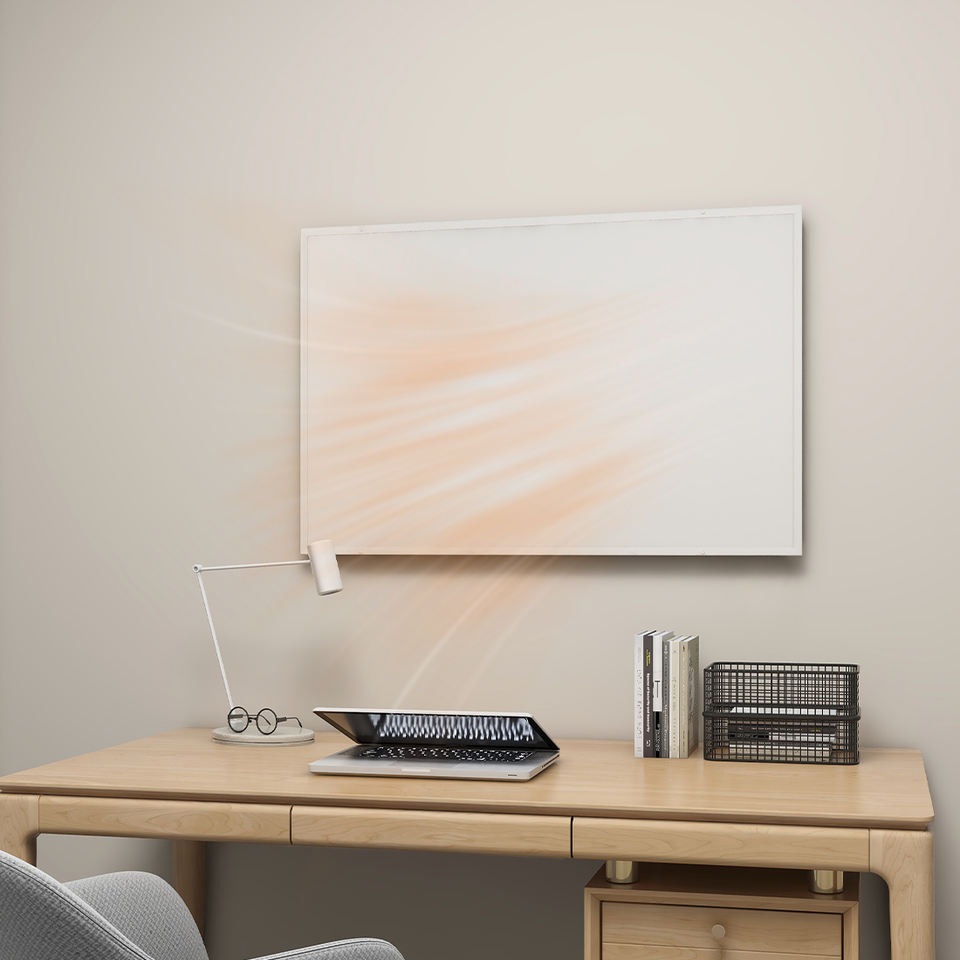

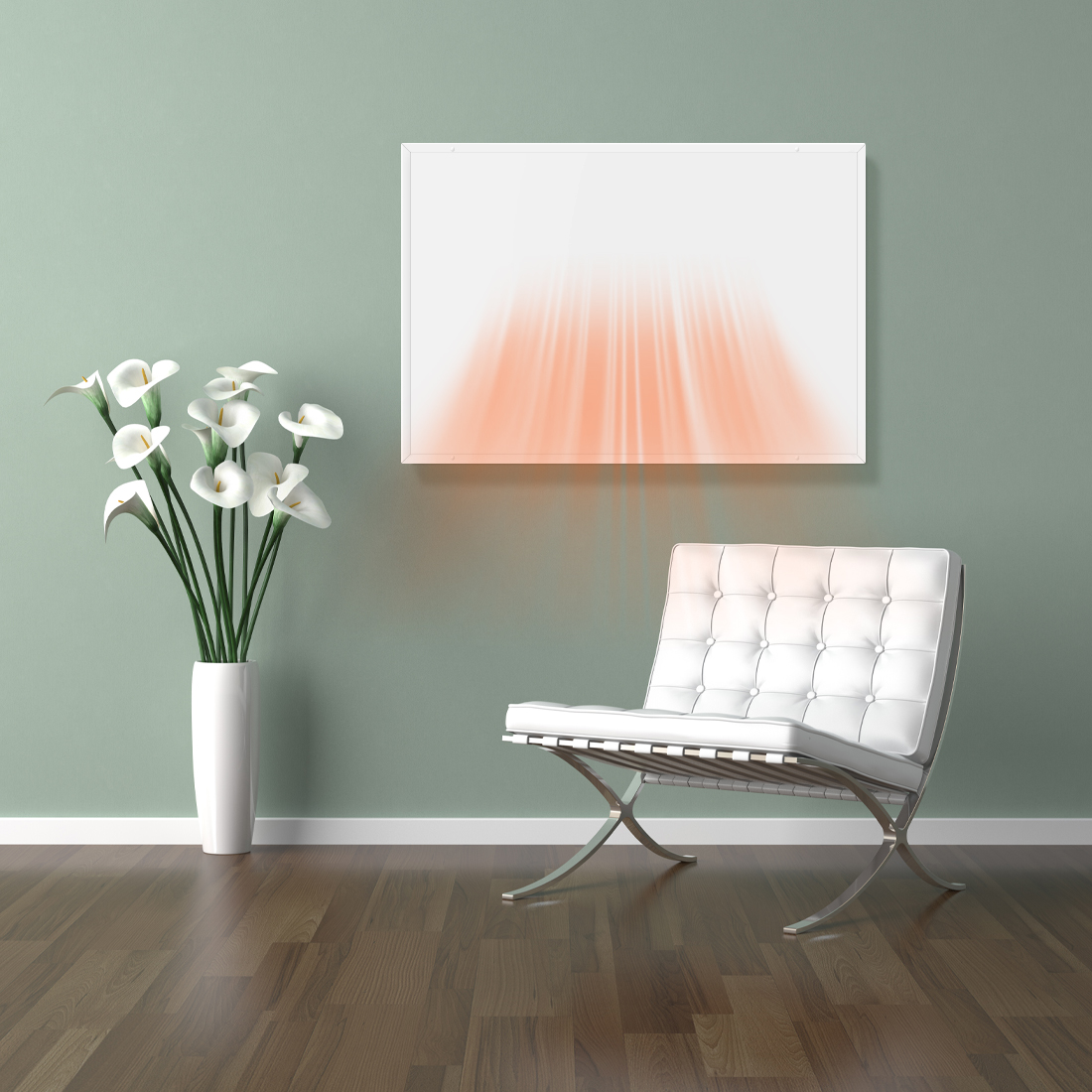

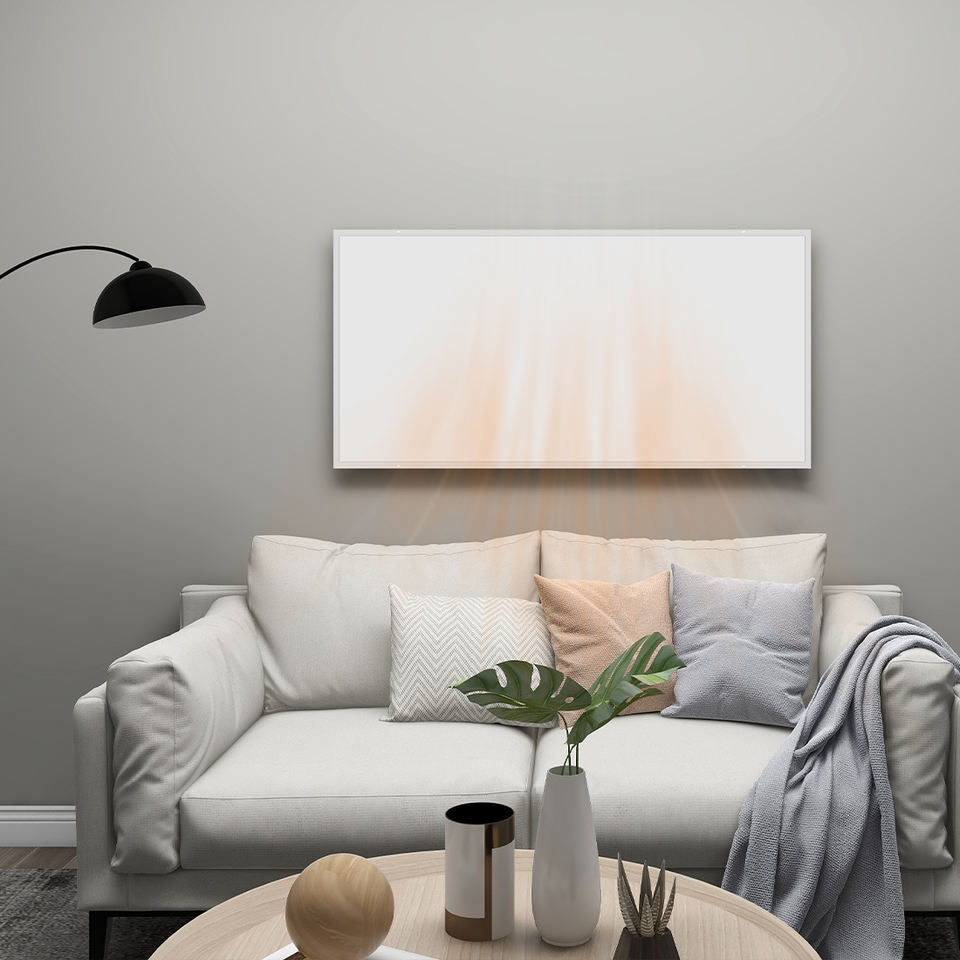

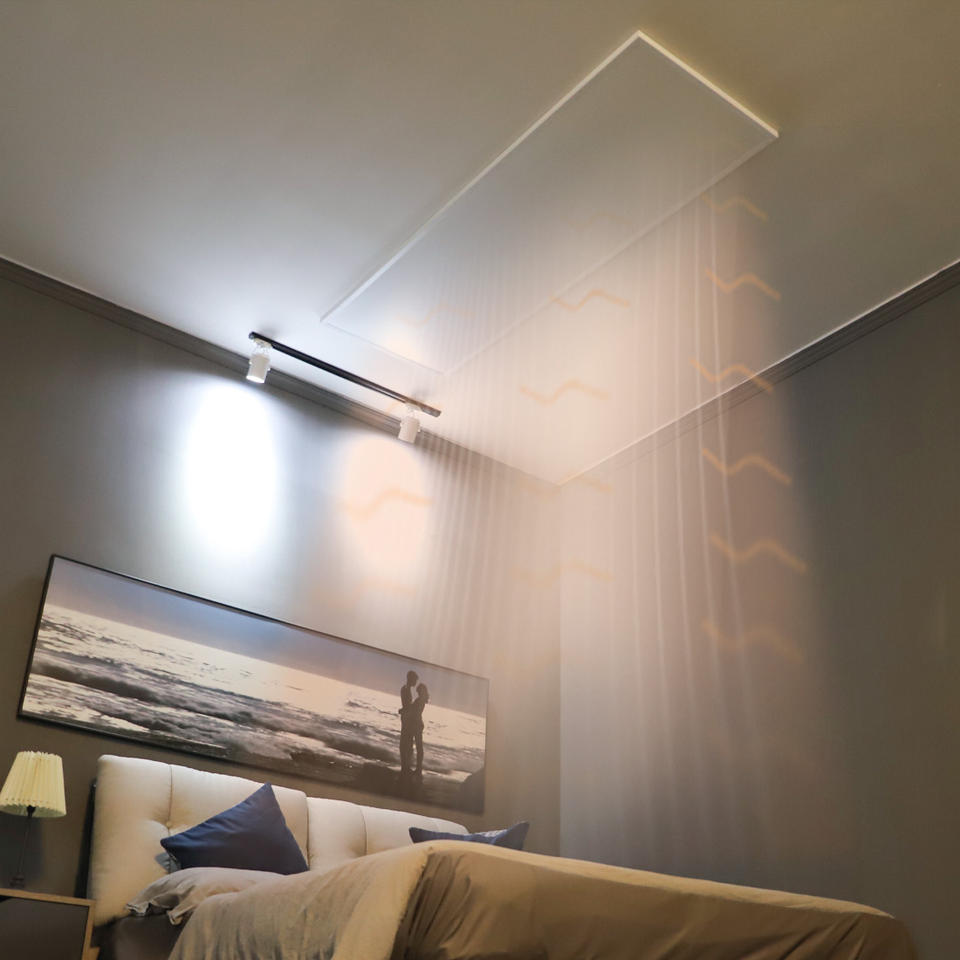

SCENE DISPLAY
