Tempered White or Black Glass Panel Heating is more stylish

  • HEATING ELEMENT
    Carbon Crystal
  • SPECIFICATION
    320W
  • MODEL NUMBER
    G0606-White glass
  • WARRANTY
    2 years
  • POWER SOURCE
    Electric
  • INSTALLATION
    Wall Mounted
  • FUNCTION
    Adjustable Thermostat;Overheat Protection
  • AFTER-SALES SERVICE PROVIDED
    Return and Replacement



PRODUCT DETAILS









1.The infrared mirror/glass heater is designed to provide an efficient, comfortable and healthy heating system for any domestic and commercial users.

2.This mirror/glass heating panel is ideally suited to be used in hall or bathroom,it's space-saving and universally usable.

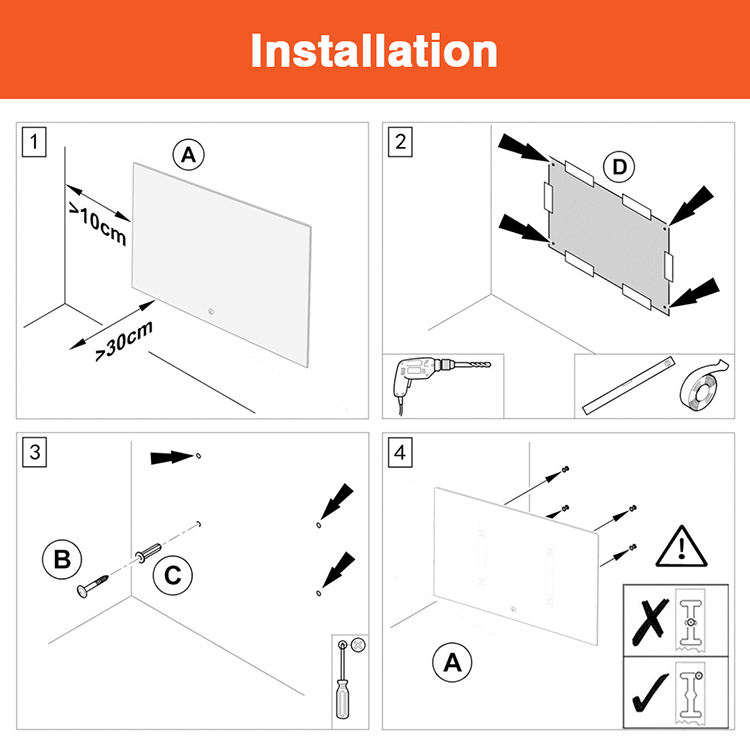

3.Each panel is equipped with 2 mounting brackets on the back which can help users install it on the wall or ceiling easily.

4. Beautiful of external appearance design,frameless, streamlined design.

5. A wide range of glass/mirror heating panels available in a huge choice of colors, sizes and styles.

Frameless Style/Ultra-thin Design
It has a simple and pleasing shap, thickness is 12mm(excluding the mounting bar). Surface is 6mm toughened glass or mirror, no any potential safety hazard. These glass or mirror heating panels are best suitable for using in bathroom.

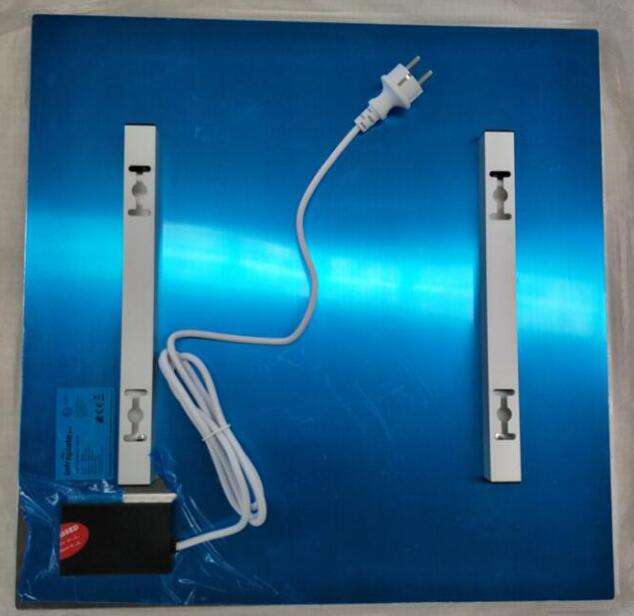

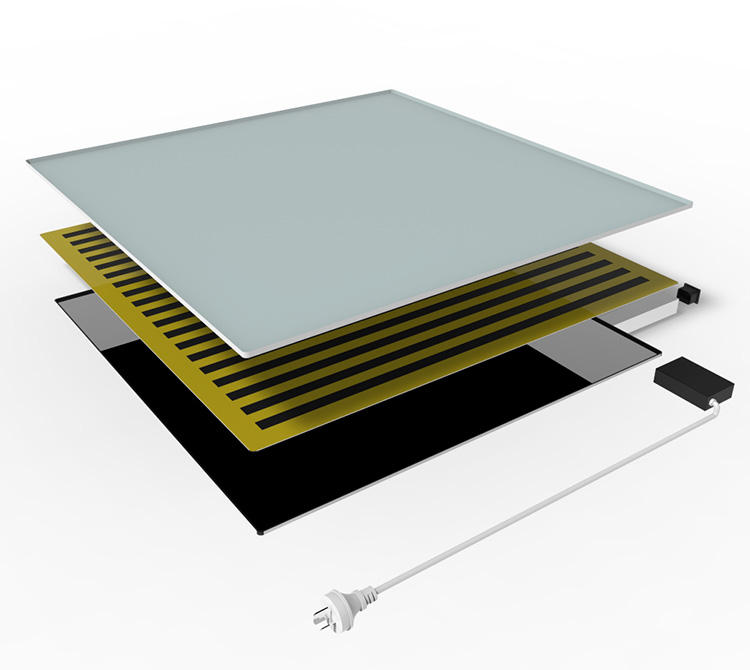

Delicate and strong Back Style

There is a whole Aluminium sheet at the back of glass or mirror to protect againt damage.
Two layers are strong connected with glue and sealed by sealant

Prefect Corner / Diamond Cutting
Each corner of mirror are processed by diamond cuting craf.
Under our "simply the best" design philosophy. we use high quality sustainable raw material and most strict production process control to make sure that these glass/mirror panels are best.

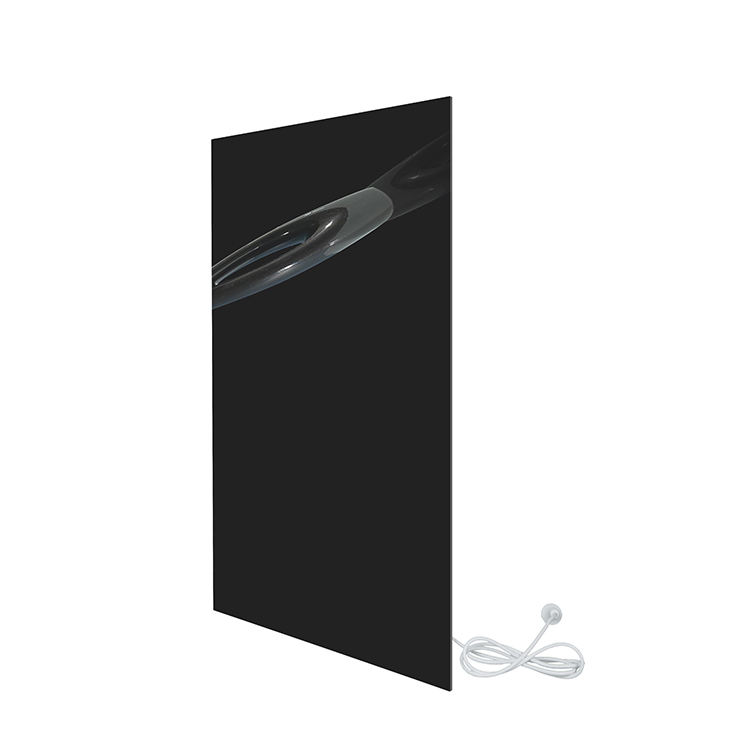

Black glass surface also available.
The glass surface can be print picture.






SPECIFICATION



Available in a lot of different sizes and power
Model Number Body size Rated power
(wall mounting)
Box size N.W G.W
G0606 600x600x12mm 320W 70*68*7cm 7kg 8.5kg
G0806 800x600x12mm 450W 90*68*7cm 9kg 10.5kg
G1006 1000x600x12mm 580W 110*68*7cm 11kg 13kg
G1206 1200x600x12mm 600W 130*68*7cm 13.5kg 15.5kg
Features

1)Heating element: Carbon crystal

2)Surface temperature: 70-90℃

3)Electric conversion efficiency: 98%
4)Front surface material: White or black high quality tempered glass
5)Frame: frameless
6)Back material: aluminum sheet
7)Ingress protection ration: IP54
8)Over heat protection: Yes
9)On/Off switch:No
10)Default cable length: 1.9m
11)Certification: CE,RoHS
12)Warranty:2 YEARS




SCENE DISPLAY



H0df28eeda94b458a826808e2186312a5W.jpg_960x960
HTB1W0u6PlLoK1RjSZFu760n0XXam.png_960x960
HTB1t8nePkvoK1RjSZFwq6AiCFXar.jpg_960x960
Hf5b6b489b84e4e1ca2c4e5f63521209ag.jpg_960x960
H64107efc42b14e13a6f25be107771c49y.jpg_960x960
Hae8d3696322341b2912d7766c5d43114J.jpg_960x960
